Single Slope Roof Prefabricated Car Garage Prefab Booth

  • Item Number: PH008
  • Port: Guangzhou / Shenzhen
  • Payment: TT / Western Union / LC
  • Lead Time: around 7-15 working days upon deposit
  • Contact Now
  • Product Details

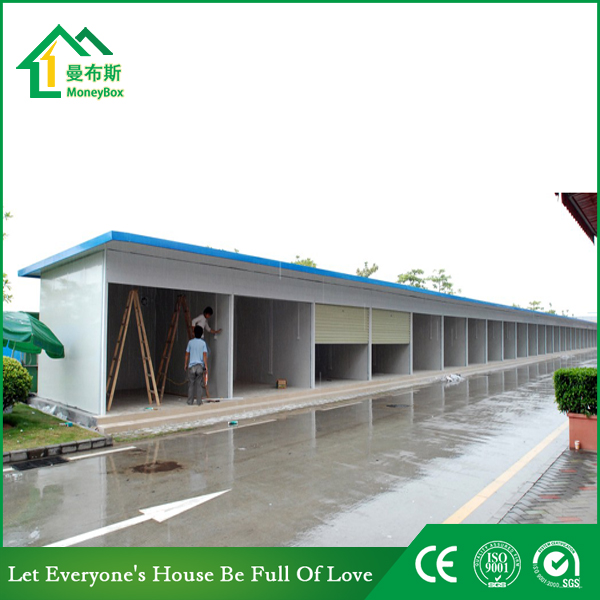

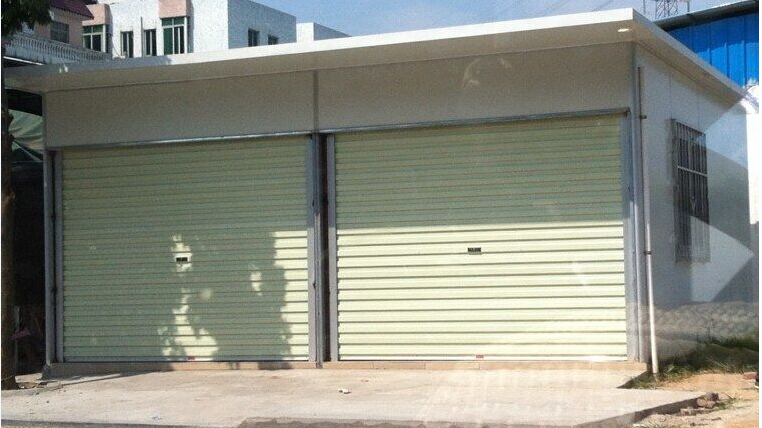

Single Slope Roof Prefabricated Car Garage Prefab Booth





Features:

1. Framing with light steel structure

 2. Easy to install and disassemble: Standardized components make it easy to assemble and

disassemble .It is especially suitable for emergency and temporary projects .With the  stable structure

 it can resisting earthquake and typhoon .

 3. Customized design ,delicate and comfortable

 4. Environment friendly and economical: Reasonable design makes it reusable.

The reusable character makes it environment friendly and economical.

 5. Cost efficient: First class material, reasonable price, once and for all investment,

low requirements for base and short completion time make it cost efficient.

 6. Relocatable: It can be relocated at least 6 times and it has long life span up to 15 -20 years ..

Applicable on slope ,hill,grassland ,desert ,riverside,etc

7.Short production time .



Application:

The prefab house can be used as office, meeting room, dormitory, shop, exhibition center...

In the fields of building, railway, highway, water conservancy project, electric power, business,

tourism and military use. The houses are all air-tight, heat-tight, warm-keeping, water-proof and anti-corrosive.



Primary Competitive Advantages:

1. Well and High Quality Control

2. Prompt Delivery

3. Customer's Designs and Logos are Welcomed

4. Competitive Prices

5. Earth-friendly Products

6. In a Variety of Designs

7. Small Order are acceptable



 Low cost prefabricated home prefab house for worker camp



*Low cost---Low labor and material costs

*Long life---Durable about 10-15 years

*Easy assembly---One worker one day install 15-25 SQM

*Disassembly & Recycling use---Reused for more than 3 times

*Flexible layout---Layout adjusted according to your requirement

*Environment protection---Environment-friendly materials

*Safe & Stable frame---Light and flexible frames provide safe and fulfill requirements.

*Water-proof , Fire-proof , Wind-proof, Earthquake-proof

* Sound insulation and heat insulation



Detailed Specification :



Steel frame/structure Column 1 floor columns:140x70mm H-beam
2 floor columns: 80x80x2.0mm square steel
A beam 140x70mm H beam
Herringbone beam(for double slope roof) C80x40x1.9
Main beam( for single slope roof) flat steel 80×40×2.0 or 100x50x2.0 or 120x60x2.0 as per house size
Ring beam 60x40x2.0mm flat steel
Roof purlin 60x40x2.0mm flat steel
Floor purline 100×40×2.0 C# steel
Horizontal support L50×3.0 mm
Roof panel Roof tile 50mm EPS color steel sandwich panel/rock wool/glass wool
Wall panel External/internal wall 50mm EPS color steel sandwich panel/rock wool/glass wool
Accessory Door 40mm EPS sandwich panel/rock wool/glass wool
Window PVC steel sliding window(115cmx100cm) ,the thickness of glass is 0.4cm
Floor plywood floor,15mm thickness(second floor use)
nails, bolts, screws, glass cements
