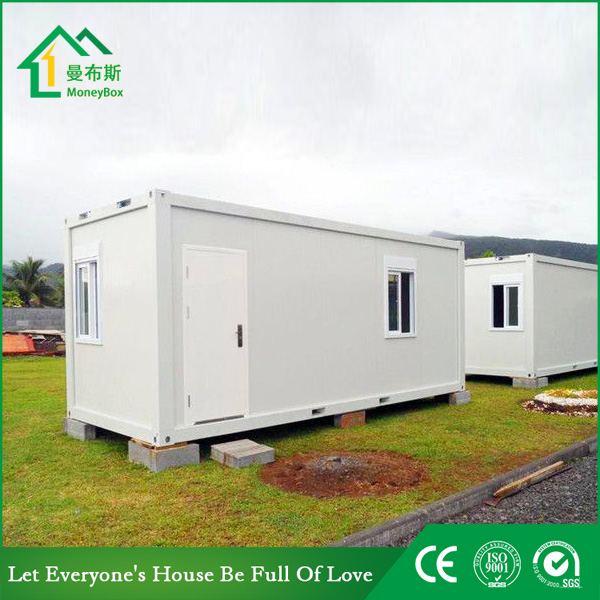

Quick Build 20ft Flatpack Container Labor Camp Dormitory
Container dormitory is modified by Prefab Flatpack container house.It is consists of top frame,
bottom frame, 4 posts and 14 pieces exchangeable wall panels. It can be flattened for easy
transporting.
Product Description
Features of Flatpack Container dormitory
1) Good ability to assemble and disassemble for several times without damage for flatpack containers dormitory.
2) Could be lifted, fixed and combined freely.
3) Flatpack Containers dormitory is insulation and waterproof.
4) Cost saving and convenient transportation( each 4 sets of Flatpack Containers dormitory can be loaded in one 20GP standard shipping container,8sets of 40HQ).
5) Using life is at least 15 years.
6)Cyclic and durable.
7) We can provide the service of installation, supervision and training of Flatpack Containers dormitory by extra.
Usage
Container houses are widely used as temporary office, temporary office, meeting room , headquarters , public accommodation , and temporary store , school, hospital ,hotel,residensial type, parking lots, show rooms,electric house , repairing shop , gas station ,integral kitchen,bathroom,etc.
Technical parameters
Roof load:80kg/m2
Wind resistance:grade 10
Earthquake resistance:grade 9
Specification:
Item |
Specification |
Frame |
5800 mm * 2250mm * 2800 mm Cold formed 3-4mm Q235 Steel |
Floor |
· flat galvanized & painted steel sheet ·100mm non-combustible mineral wool ·Customized PVC or cement floor |
Roof |
flat galvanized & painted steel sheet ·100mm non-combustible mineral wool ·one set CE electronic installation |
Door |
·Single fold, 50mm thick ·Insulated with EPS foam with a handle lock · Opening dimensions of 808×2030mm, · Net opening dimensions: 754 x 1985 mm. |
Wall panel |
· galvanized & painted steel sheet ·50mm EPS/Rock wool /PU sandwich panel |
Window |
PVC, white color, 800×1100mm, glazed with double layer glass with sliding mechanism (one side fixed and one sliding). More optional types for your specific needs. |
