Economic and muti-used pefab house

  • Item Number: PH021
  • Port: Guangzhou / Shenzhen
  • Payment: TT / Western Union / LC
  • Color: Blue While Gray
  • Lead Time: 3 days
  • Contact Now
  • Product Details

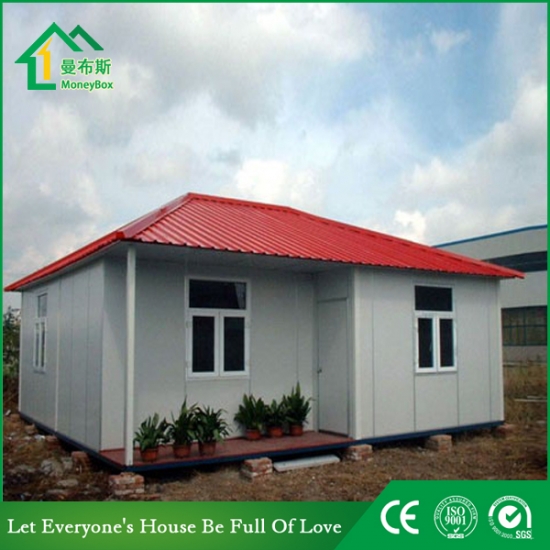

Economic and Muti-used Pefab House




Features:

1. Framing with light steel structure

 2. Easy to install and disassemble: Standardized components make it easy to assemble and

disassemble .It is especially suitable for emergency and temporary projects .With the  stable structure

 it can resisting earthquake and typhoon .

 3. Customized design ,delicate and comfortable

 4. Environment friendly and economical: Reasonable design makes it reusable.

The reusable character makes it environment friendly and economical.

 5. Cost efficient: First class material, reasonable price, once and for all investment,

low requirements for base and short completion time make it cost efficient.

 6. Relocatable: It can be relocated at least 6 times and it has long life span up to 15 -20 years ..

Applicable on slope ,hill,grassland ,desert ,riverside,etc

7.Short production time .



Application:

The prefab house can be used as office, meeting room, dormitory, shop, exhibition center...

In the fields of building, railway, highway, water conservancy project, electric power, business,

tourism and military use. The houses are all air-tight, heat-tight, warm-keeping, water-proof and anti-corrosive.



Primary Competitive Advantages:

1. Well and High Quality Control

2. Prompt Delivery

3. Customer's Designs and Logos are Welcomed

4. Competitive Prices

5. Earth-friendly Products

6. In a Variety of Designs

7. Small Order are acceptable



 Low cost prefabricated home prefab house for worker camp



*Low cost---Low labor and material costs

*Long life---Durable about 10-15 years

*Easy assembly---One worker one day install 15-25 SQM

*Disassembly & Recycling use---Reused for more than 3 times

*Flexible layout---Layout adjusted according to your requirement

*Environment protection---Environment-friendly materials

*Safe & Stable frame---Light and flexible frames provide safe and fulfill requirements.

*Water-proof , Fire-proof , Wind-proof, Earthquake-proof

* Sound insulation and heat insulation



Detailed Specification :



Steel frame/structure Column Double 8# C shape Steel
Round beam 8# C shape Steel
Herringbone beam(for double slope roof) 8# C shape Steel ,40Angle steel
Roof Beam  40 Angle Steel
Rain Cover Stand  Square tube and Flat tube
Floor Beam  8# C shape Steel
Roof Purlin  40 Angle steel
Bracing  8mm round Beam
Roof panel Roof tile 50mm EPS color steel sandwich panel/rock wool/glass wool
Wall panel External/internal wall 50mm EPS color steel sandwich panel/rock wool/glass wool
Accessory Door 50mm composite door ,Steel door
Window PVC steel sliding window(1740*925mm) ,the thickness of glass is 0.4cm
Floor plywood floor,15-25mm thickness(second floor use)
nails, bolts, screws, glue,lock

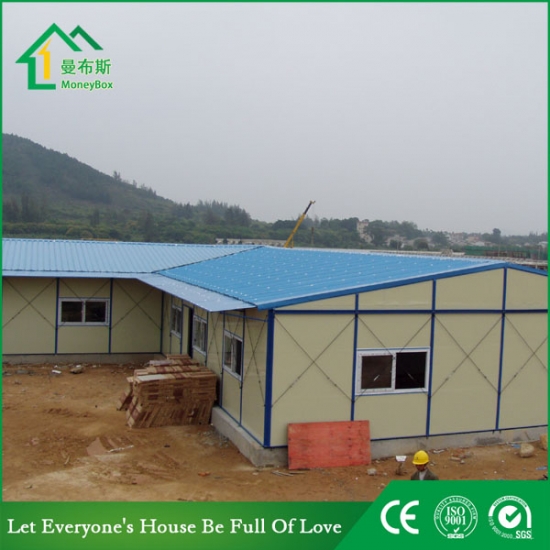

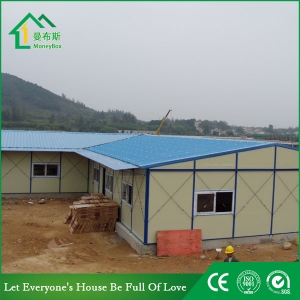

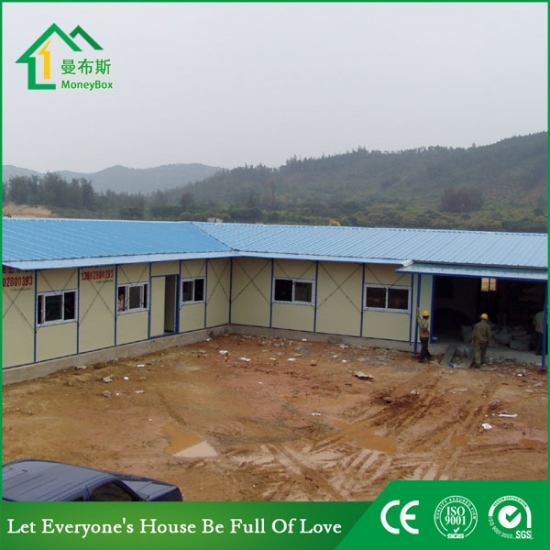

prefab worker camp



Workshop and Loading
